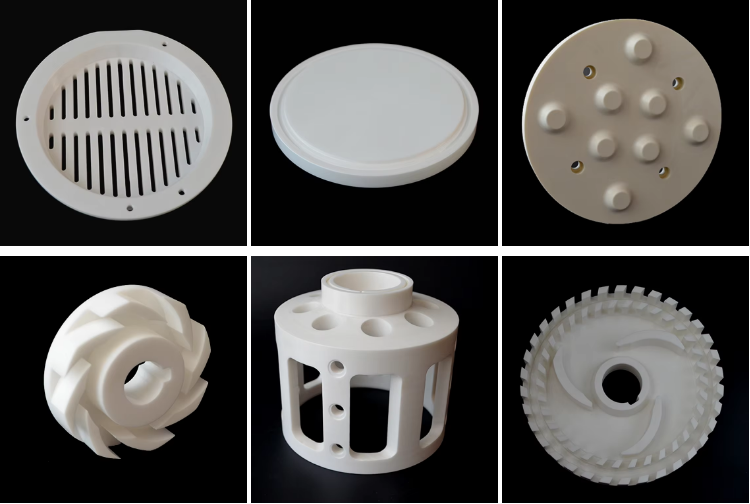

High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts

Product Categories
Hunan Yuanhong New Materials Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts

Brand Name : YH

Certification : ISO

Place of Origin : CHINA

MOQ : 10

Price : Negotiated

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10000pcs per month

Delivery Time : 10-30days

Packaging Details : by carton

Density : 6.0 g/cm³

Manufacturing Process : Injection molding, pressing, or milling

Material : Zirconia (Zirconium Dioxide)

Surface Finish : Polished or machined

Electrical Resistivity : 10^10 - 10^14 Ω·cm

Operating Temperature : Up to 2400°C

Hardness : 8.5 Mohs

Fracture Toughness : 7-10 MPa·m^0.5

Thermal Conductivity : 2-3 W/m·K

Flexural Strength : 900-1200 MPa

Applications : Dental implants, cutting tools, wear-resistant parts

Porosity : Typically <0.1%

Chemical Resistance : Excellent against acids and alkalis

Coefficient Of Thermal Expansion : 10.5 x 10^-6 /°C

Contact Now

High-temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts Customizable

Yttria Stabilized Zirconia (YSZ) Ceramic Component Part:
Heavy-Duty YSZ Ceramic Special-Shaped Parts: Conquer Extreme Wear in Mining & Construction.
Crafted from high-strength YSZ ceramic, these custom-machined components are built to endure
the harshest abrasion and impact in mining, quarrying, and construction
environments—where traditional materials quickly succumb to wear.
Used as custom valve seats, turbocharger impeller components, and fuel injector nozzles,
they withstand extreme friction, high heat (up to 1200°C), and corrosive engine fluids without wear or performance degradation.
Compared to metal alternatives, they reduce wear-related failures, improve fuel efficiency, and extend engine lifespan,
supporting the development of high-performance, long-lasting automotive systems.

Why Zirconia (YSZ) is the Superior Choice

When processing hard or high-purity materials, jar material wear can contaminate samples and skew
analytical data. Stainless steel introduces metallic ions, while alumina wears relatively quickly.
Yttria-Stabilized Zirconia solves these problems: it offers extreme hardness, outstanding chemical stability,
and is the ideal choice for achieving "true" grinding results.

High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts
Technical Specifications
Composition:Yttria-Stabilized Zirconia (Y-TZP)
Density: ≥ 6.0 g/cm³
Hardness (HV): ≥ 1250
Flexural Strength: ≥ 1000 MPa
Fracture Toughness: 8 - 11 MPa·m¹/²
Max. Service Temperature: ≥ 800 °C
Thermal Expansion Coefficient: ~10.5 × 10⁻⁶/K
Corrosion Resistance:Excellent ( Resists acids/alkalis)
Biocompatibility:Excellent
Electrical Insulation:Good Insulator
Application
1) Industrial Pumps, Valves & Fluid Handling: Ceramic plungers, seal rings, valve cores, valve seats, nozzles
2) Precision Machinery & Automation: Guides, bearings, fixtures, measuring instrument parts, textile ceramics
3) Electronics & Semiconductors: Insulators, chip carriers, vacuum chucks.
4) Consumer Goods & Tools: High-quality knives and scissors, watch cases, decorative parts
High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts
Basic Physical & Mechanical Properties
Zirconia Ceramic Properties
Item
Unit
Typical Values
Physical Properties
Color
Customized
Density
g/cm3
6.00
Zirconia Content
%
94.4
Gas Permeability
0
Water Absorption
0
Crystal Size
um
0.5
Mechanical Properties
Rockwell Hardness(45N)
R45N
78
Modulus of Elasticity (20°C)
Gpa
>200
Compressive Strength (20°C)
Mpa
2000
Flexural Strength (20°C)
Mpa
800
Thermal Properties
Thermal Expansion Coefficient
10-6/°C
9.6
Thermal Shock Resistance
T°C
250
Thermal Conductivity (20°C-400°C)
W/m.K
2.5

High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts

Our Technical Expertise: The Reason to Choose Us
Feature :Premium Material & Precision Manufacturing
1:High-Purity Zirconia Base Material:
We use high-purity zirconia (ZrO₂) powder, stabilized with additives like yttrium oxide (Y₂O₃)
to obtain a stable tetragonal crystal phase at room temperature.This phase transformation
toughening mechanism is the cornerstone of our product's high performance.
2:Advanced Forming Processes: We master various technologies such as injection molding,
dry pressing, and isostatic pressing. We select the optimal solution based on the complexity
and precision requirements of your part to achieve one-time precision molding of complex
irregular structures.
3:Full-Size Precision Machining: Sintered blanks can be precisely ground, drilled, and polished
using diamond tools. We guarantee a machining tolerance of ±0.02mm and a surface finish up
to a mirror effect, ensuring a perfect fit for your equipment.
Advantage:Extraordinary Advantages from Material Science
1:Extreme Hardness & Wear Resistance: Zirconia ceramic's Vickers hardness (HV) can reach
over 1250, with wear resistance far exceeding that of alumina ceramics and most metals,
capable of withstanding long-term particle erosion and friction.
2:Excellent Mechanical Strength & Toughness: Benefiting from the "phase transformation
toughening" effect, our zirconia components possess high flexural strength and fracture
toughness, can withstand high loads and certain impacts, and avoid brittle fracture.
3:Powerful Chemical Corrosion Resistance: Highly inert to most acids, alkalis, solvents,
and molten metals, can operate stably in highly corrosive media for long periods, with a
lifespan far exceeding that of stainless steel.
4:Excellent Biocompatibility & Insulation: The material is safe and non-toxic, suitable for
biomedical applications; it is also an excellent insulator, ideal for electronics and electrical fields.
High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts
Product packaging
1:Individually packed in anti-static foam
2:Vacuum-sealed for moisture protection
3:Labeled with part number, dimensions, and material grade
4:Shock-resistant outer packaging
5:Available in bulk or custom packaging
High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts
High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts

High Temperature Zirconia Ceramic Parts Precision Industrial Ceramic Structural Parts

FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
